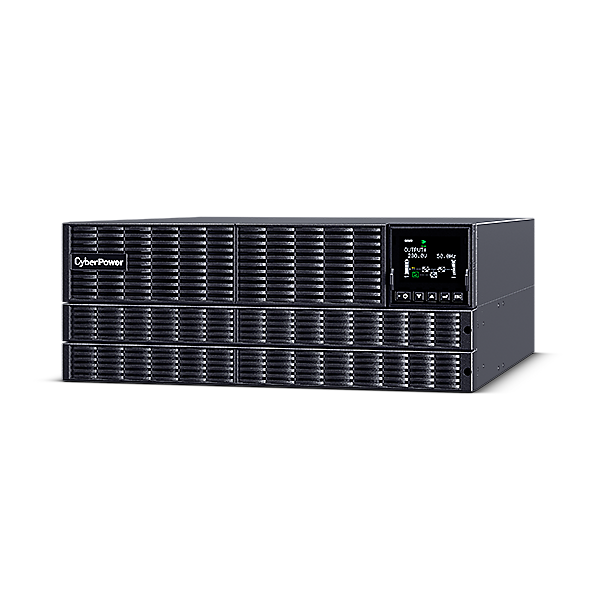

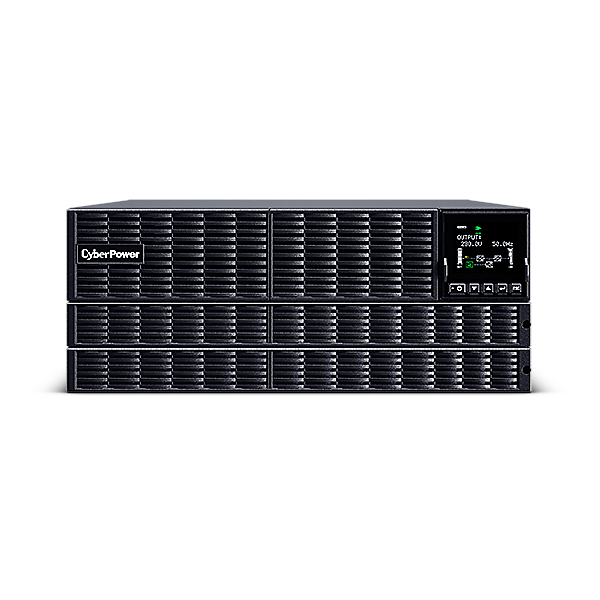

CyberPower OLS10KERT4UA is a high-efficiency online double-conversion UPS delivering seamless Pure Sine Wave output with zero transfer time. Designed for mission-critical applications such as servers, NAS, surveillance systems, transportation infrastructure, and emergency systems, it is ideal for server rooms and data center environments.

With a high output power factor (PF = 1.0), it maximizes usable power within a compact 4U rack/tower convertible design. The tiltable color LCD panel allows easy monitoring and configuration. The UPS supports automatic Extended Battery Module (EBM) detection and adjustable charging current to optimize recharge time. It also features dry contact relay ports and optional SNMP/HTTP remote management for advanced system integration.

Key Specifications

Capacity: 10000VA / 10000W
Topology: Online Double Conversion
Waveform: Pure Sine Wave
Transfer Time: 0 ms
Power Factor: 1.0
Efficiency (ECO Mode): >98%

Input Voltage: 230V (110?300V range)
Output Voltage: Configurable 200 / 208 / 220 / 230 / 240V ?1%
Output Connection: Hardwire Terminal Block

Battery Runtime:
7.8 min @ Half Load
1.8 min @ Full Load
Recharge Time: 4 hours
Adjustable Charging Current: 1?4A
User-Replaceable & Hot-Swappable: Yes
Extended Battery Module: Up to 10 (Model: BPS192V9ART3U)

Surge Protection: 1335 Joules

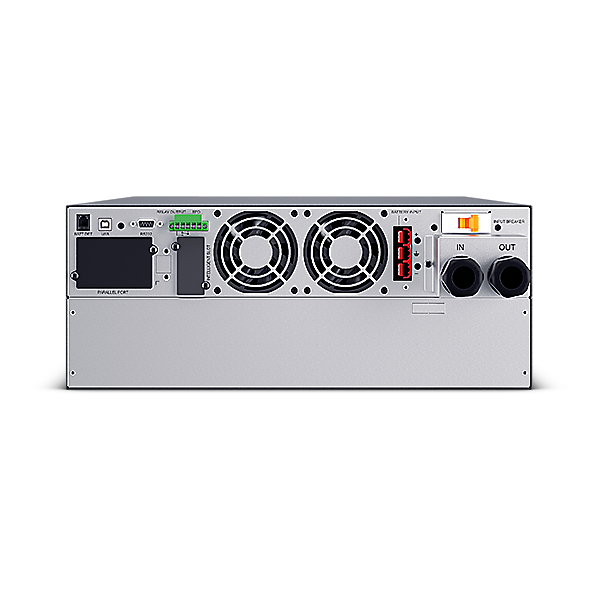

Communication: USB, RS232, Dry Contact, EPO Port
Optional Remote Management: SNMP/HTTP (RMCARD205)
Parallel Expansion: Up to 4 Units (Optional)

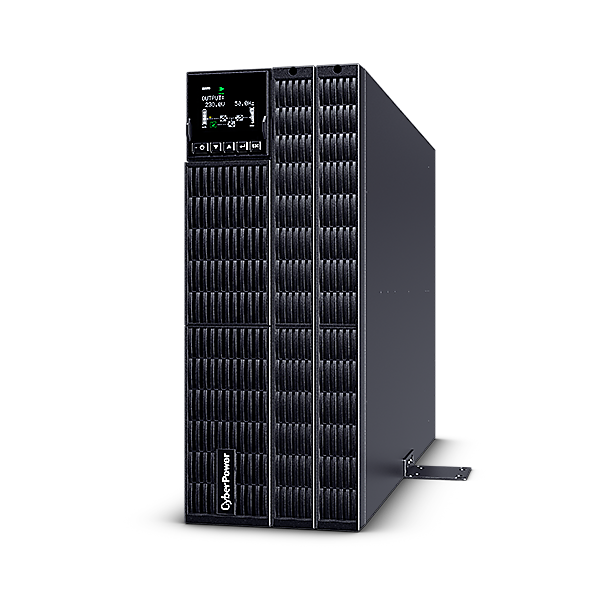

Form Factor: 4U Rack / Tower Convertible
Dimensions (W ? H ? D): 433 ? 171 ? 661 mm
Weight: 62.5 kg
Operating Temperature: 0?C ? 40?C
Certification: CE, TISI, RoHS
