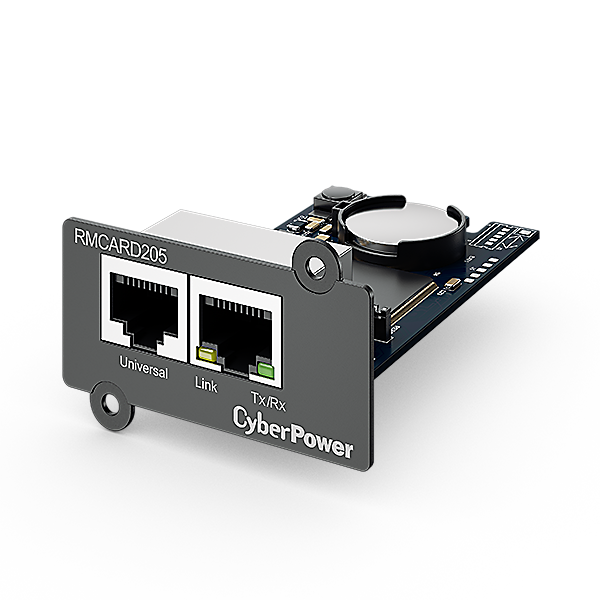

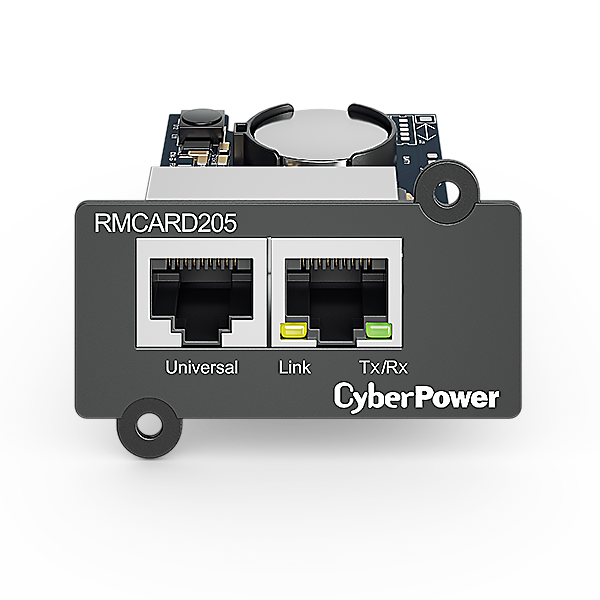

CyberPower RMCARD205 is an optional network management card designed for selected CyberPower UPS systems. By installing the card into the UPS SNMP/HTTP slot, users can remotely monitor and control their UPS via web browser, Network Management System (NMS), or command line interface (SSH/Telnet).

It enables scheduled shutdown, startup, and reboot functions, while providing real-time event notifications via e-mail, SNMP traps, Syslog, and SMS. With hot-swappable design, the UPS can remain operational during installation or replacement. The card also supports environmental sensors and multi-language interface for flexible management.

Key Specifications

Installation: Plug-and-play
Connectivity: RJ45 (Network), RJ45 (Environmental Sensor)
Network Standards: Ethernet 10/100Base-T

Remote Management:
Web Browser, CLI (SSH/Telnet), NMS

Event Notifications:
E-mail, SNMP Traps, Syslog, SMS

Supported Protocols:
IPv4/v6, SNMPv1/v3, HTTP/HTTPS, TCP/IP, UDP, DHCP, NTP, DNS, SMTP/SMTPS, SSH, SSL, TLS, Telnet, FTP, SCP, Syslog, Modbus TCP

Authentication:
RADIUS, LDAP, LDAPS, Windows AD

Firmware: User-upgradeable
Environmental Sensor Support: Yes

Dimensions (W ? H ? D): 54 ? 36.1 ? 76.5 mm
Weight: 38 g
Operating Temperature: 0?C ? 40?C
Certification: CE, FCC Class A, EAC, RoHS
