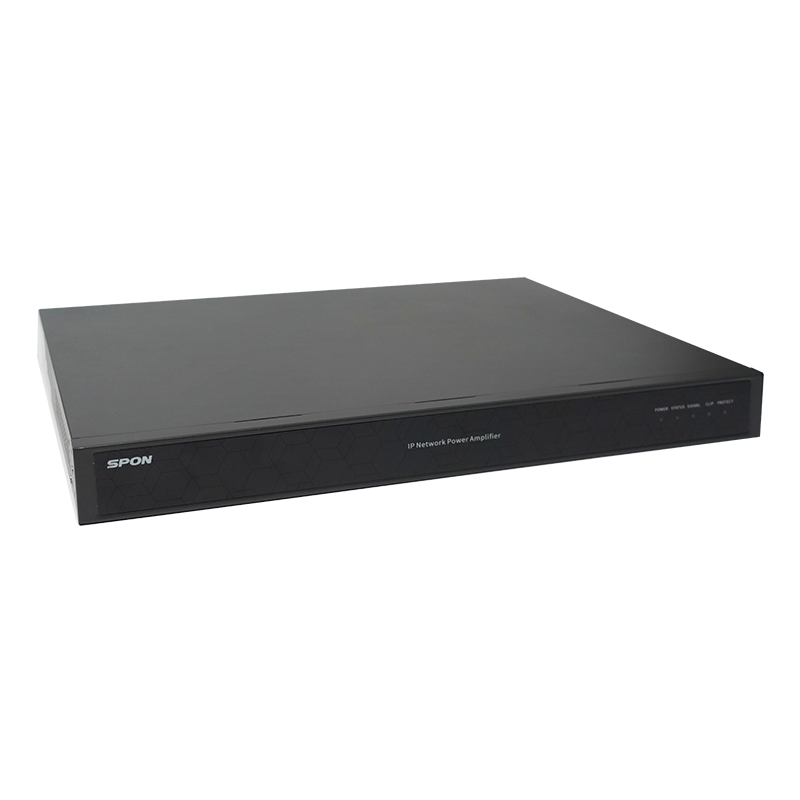

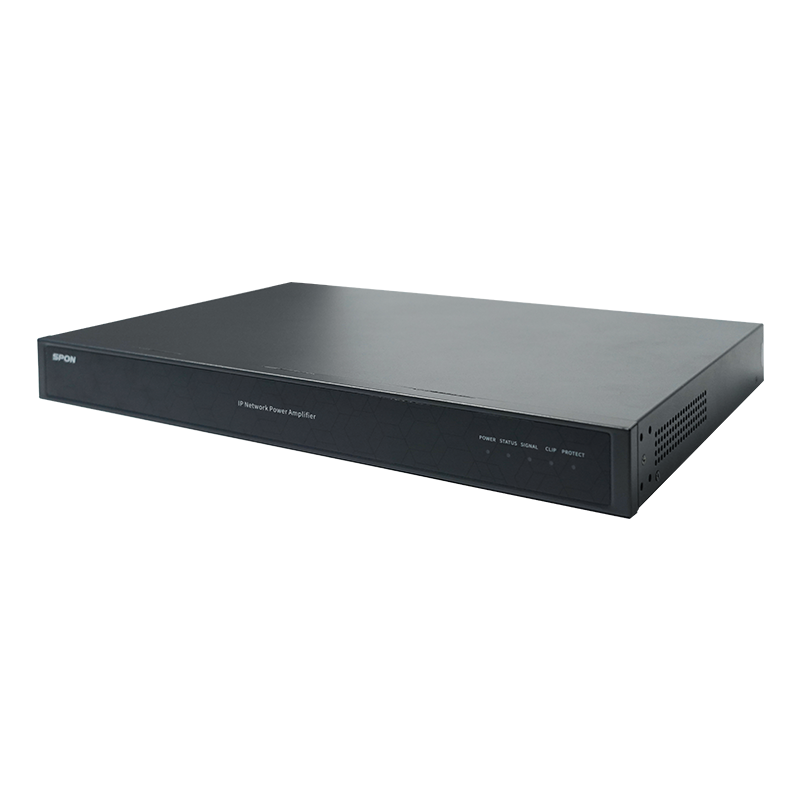

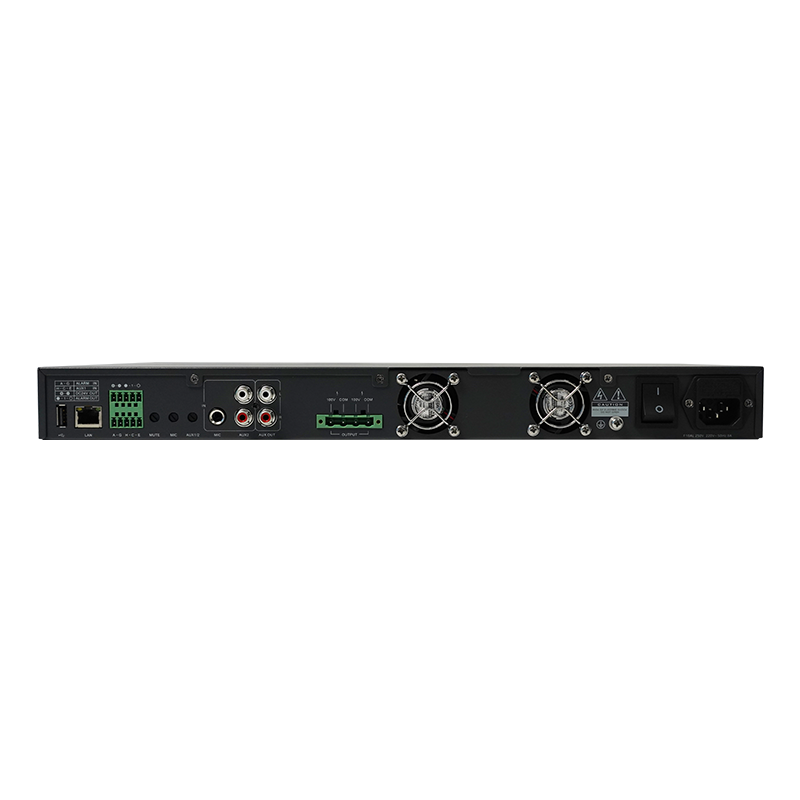

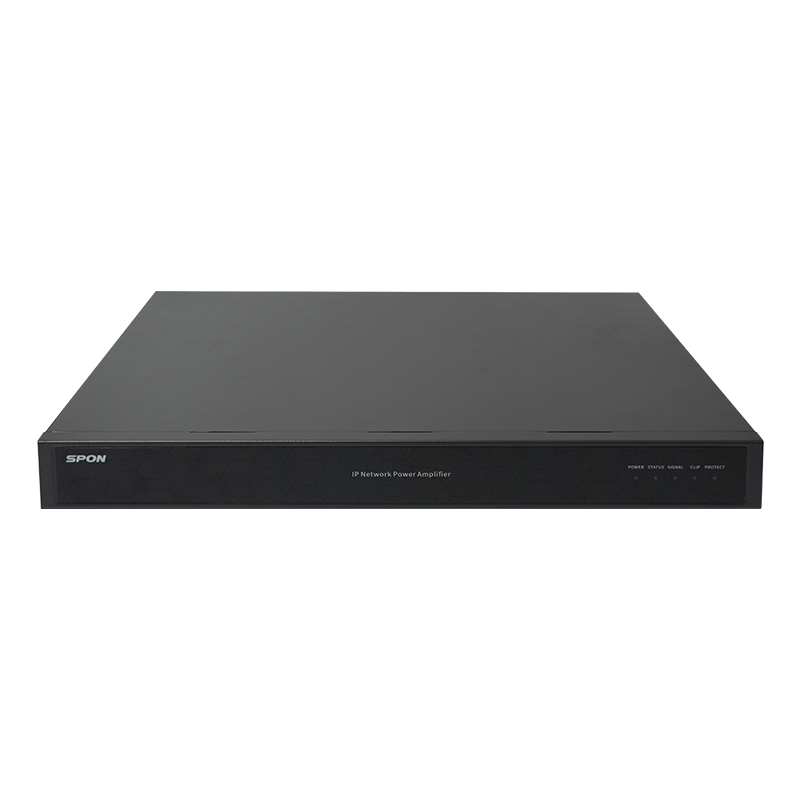

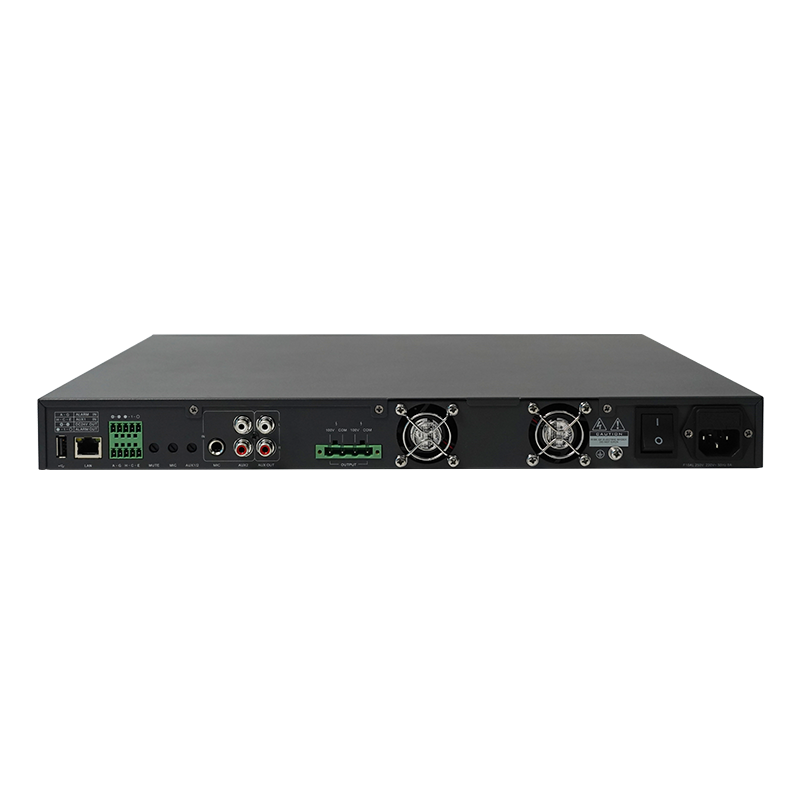

XC-9508P26 is a 1U rack-mounted IP integrated amplifier designed for flexible network audio broadcasting and intercom applications. Equipped with a built-in 260W digital Class-D amplifier, it supports 100V constant-voltage speakers and provides reliable performance for schools, factories, offices, and public facilities.

With SIP protocol compatibility, offline broadcasting capability, and relay I/O integration, the amplifier can receive real-time VOIP announcements or automatically trigger alarm broadcasts from third-party systems such as IP cameras and fire alarms. Its intelligent cooling system and comprehensive protection circuits ensure stable long-term operation.

Key Specifications:

Power Parameters
Power Supply: AC 100V?240V, 50/60Hz
Rated Output Power: 260W
Power Consumption: =310W

Audio Parameters
Audio Codec: MP3, PCM, ADPCM, G.711 A-law, G.711 ?-law, G.729
S/N Ratio: =84dB
THD: =0.5% (1kHz, 1/2 rated output)
Frequency Response: 130Hz?18KHz
Sampling & Bit Rate: 8kHz?44.1kHz, 16bit, 8kbps?320kbps

Network Parameters
Network Interface: 10/100Mbps RJ45
Network Protocol: SIP, FTP, HTTP, RTP, TCP/IP, UDP, ARP, ICMP, IGMP
Configuration: Web Interface / DevConfig Tool

Speaker Output
100V constant-voltage output

Mechanical & Environment
Mounting: 1U Rack-Mounted
Operating Temperature: -10?C to +45?C
Storage Temperature: -20?C to +55?C
Humidity: =90% RH (non-condensing)
Cooling: Intelligent temperature control, forced air cooling
Protection: Over-current, Short-circuit, Overload, Thermal, Lightning & Surge protection
Housing: Surface-treated Steel Plate
Color: Black

Dimensions & Weight
Product Dimensions: 440 ? 300 ? 44mm
Net Weight: 3.5kg
