C3 Plus Series RFID Controller (BOX)

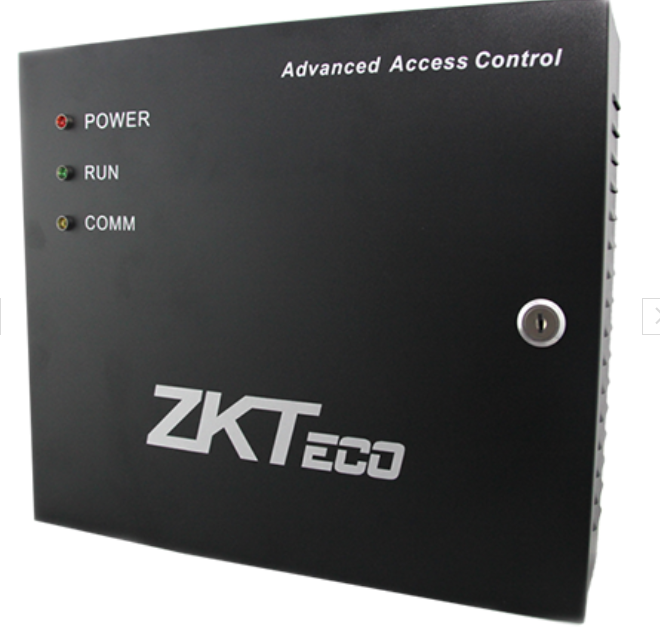

(ZKPSMB030B METAL BOX + PSU)

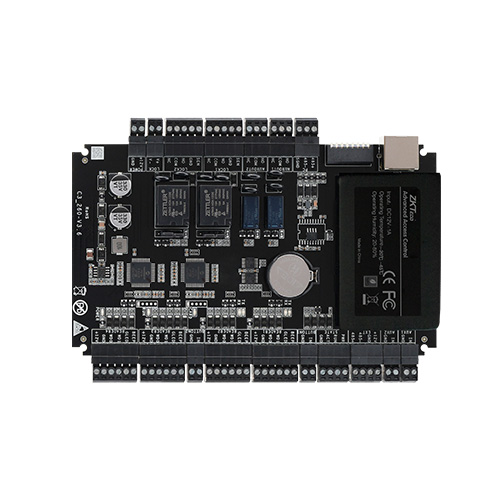

ZKTeco?s C3 Plus Series is an IP-based controller designed for small to medium enterprises, supporting multi-tech card authentication and dynamic QR code verification. Compatible with ZKTeco RS-485 and Wiegand readers, it ensures secure access control with AES-encrypted communication and HTTPS/TLS 1.2 support. The series includes C3-100 Plus, C3-200 Plus, and C3-400 Plus, offering flexible options for 1 to 4 access points and scalable input/output expansion with EX0808 boards.

Key Specifications:
OS / Hardware: Linux | CPU: Single Core @ 1.0GHz | RAM: 128MB | ROM: 256MB
Authentication: Card / Password / QR Code
Access Points:
C3-100 Plus: 1
C3-200 Plus: 2
C3-400 Plus: 4

Reader Capacity (RS-485 / Wiegand 26/34/66-bit):
C3-100 Plus: 2 RS-485 / 2 Wiegand
C3-200 Plus: 4 RS-485 / 4 Wiegand
C3-400 Plus: 8 RS-485 / 4 Wiegand

IO Expansion: Up to 8 ? EX0808 boards
Inputs (Exit Button / Door Status / AUX):
C3-100 Plus: 1 / 1 / 1 (expandable to 64 with EX0808)
C3-200 Plus: 2 / 2 / 2 (expandable to 64)
C3-400 Plus: 4 / 4 / 4 (expandable to 64)

Outputs (Form C Relay Lock / Aux):
C3-100 Plus: 1 / 1 (expandable to 64)
C3-200 Plus: 2 / 2 (expandable to 64)
C3-400 Plus: 4 / 4 (expandable to 64)

User / Card / QR Code Capacity: 100,000 each
Transaction Capacity: 500,000
Communication: TCP/IP ?1 | RS-485 ?1 | Wiegand Input ?2?4 | USB Type A ?1 | Aux | Lock | Alarm
Power Supply: 9.6?14.4V DC
Operating Temp/Humidity: 0?45? | 20?80% RH
Dimensions (mm):
C3-100 / C3-200 Plus: 175 ? 99 ? 19.3
C3-400 Plus: 215.88 ? 99.14 ? 19.3
Weight (Net): 0.158?0.252 Kg
Supported Software: ZKBio CVAccess
Certifications: ISO14001, ISO9001, CE, FCC, RoHS
