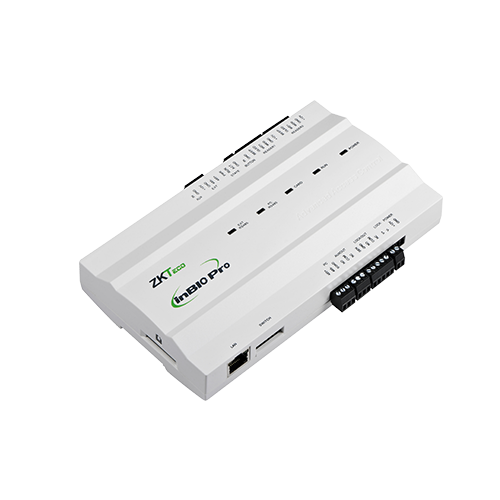

InBio Pro Serious BIOMETRIC Controller

ZKTeco?s InBio Pro Plus Series is a project-oriented, high-end access control solution with embedded facial, fingerprint, card, password, and QR code authentication. Equipped with TCP/IP, RS-485, and Wiegand interfaces, it supports secure, scalable, and flexible deployment over LAN/WAN networks. The series includes InBio160 Pro Plus, InBio260 Pro Plus, and InBio460 Pro Plus, offering 1?4 access points and expandable input/output via EX0808 boards.

Key Specifications:
OS / Hardware: Linux | CPU: Single Core @1.0GHz | RAM: 128MB | ROM: 256MB
Authentication: Card / Password / Fingerprint / Face / QR Code
Access Points:
InBio160 Pro Plus: 1
InBio260 Pro Plus: 2
InBio460 Pro Plus: 4

Reader Capacity (RS-485 / Wiegand 26/34/66-bit):
InBio160 Pro Plus: 2 RS-485 / 2 Wiegand
InBio260 Pro Plus: 4 RS-485 / 4 Wiegand
InBio460 Pro Plus: 8 RS-485 / 4 Wiegand

IO Expansion: Up to 8 ? EX0808 boards
User / Card / Fingerprint / Face / QR Code Capacity:
Users: 100,000 | Cards: 100,000 | Fingerprint Templates: 20,000 | Face Templates: 3,000 | QR Codes: 100,000
Transaction Capacity: 500,000
Biometric Performance:
Fingerprint <0.3s / FAR =0.0001% / FRR =0.01%
Facial <0.3s / FAR =0.01% / FRR =0.02%

Inputs (Exit / Door Status / AUX):
InBio160 Pro Plus: 1 / 1 / 1 (expandable to 64)
InBio260 Pro Plus: 2 / 2 / 2 (expandable to 64)
InBio460 Pro Plus: 4 / 4 / 4 (expandable to 64)
