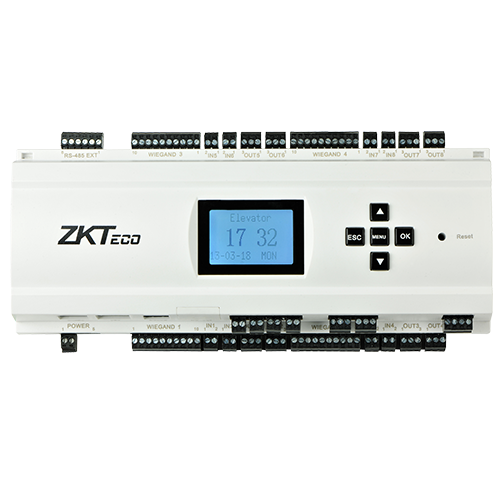

Elevator Control Panel

The EC10 Elevator Control Panel is a high-security, scalable solution designed specifically for elevator access control. It can manage up to 10 floors and restrict floor access based on fingerprint, proximity card, or password credentials. Pre-defined time schedules and a Passage mode for unrestricted hours provide flexible floor access management. Multiple EC10 panels can be daisy-chained to control an unlimited number of floors. Each panel supports up to three EX16 floor extension boards, allowing a single EC10 bundle to manage up to 58 floors.

Key Specifications:
Floor Control: 10 Relays
Fingerprint Capacity (Optional): 3,000
RFID Card Capacity: 30,000
Event Capacity: 100,000
Power Supply: 12V DC 1A
Communication to PC: TCP/IP, RS485
Communication to EX16: RS485
Supported EX16 Boards: Up to 3
Dimensions: 242 ? 95 ? 60 mm (L?D?H)
Net Weight: 0.8 Kg
