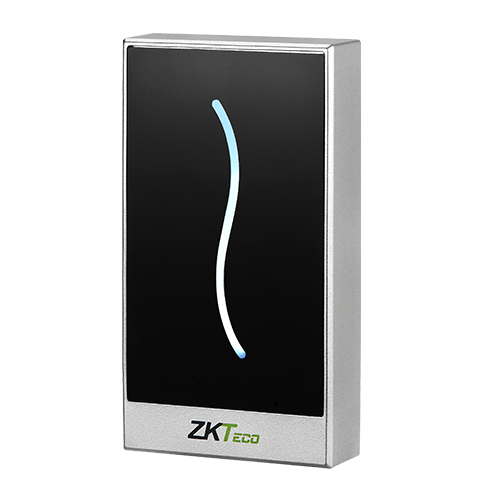

ProID10 (EM) – 125kHz RFID Card Reader

ProID10 (ID) is a compact and reliable RFID reader supporting 125kHz EM ID cards. Designed for indoor and outdoor access control applications, it offers stable performance, fast reading speed, and low power consumption.

With adjustable Wiegand output, LED and buzzer indicators, and IP65 waterproof protection, ProID10 (ID) is ideal for office buildings, residential projects, and industrial facilities.

Key Specifications:
Card Type: 125kHz EM ID Card
Read Range: 3.5 cm
Reading Time: = 300ms
Output Interface: Wiegand 26-bit or 34-bit (Adjustable)
Input Port: External LED Control | External Buzzer Control
Operating Voltage: 7?13V DC
Current Draw: < 80mA
LED Indicator: Pulsing White Standby Light
Audio Indicator: Beep
Ingress Protection: IP65 (Indoor / Outdoor Use)
Operating Temperature: -10?C to +65?C
Operating Humidity: 10% ? 90% RH (Non-condensing)
Dimensions: 80.5 ? 44 ? 15 mm
Color Options: Black / White
