ZKTECO ProID Series Wiegand Card Reader (KEYPAD)

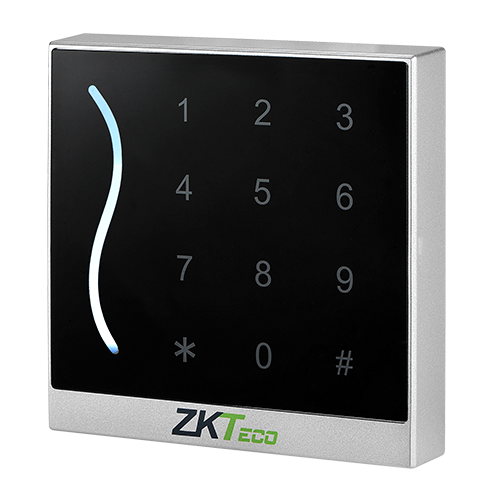

ProID30 (MF) – 13.56MHz RFID Card Reader with Keypad

ProID30 (MF) supports 13.56MHz Mifare (MF) cards, offering enhanced encrypted credential security. Equipped with a touch keypad and IP65 waterproof design, it is suitable for both indoor and outdoor installations.

Key Specifications:

Card Type: 13.56MHz MF (Mifare) Card
Read Range: 5 cm
Reading Time: = 300ms
Keypad: Touch Keypad
Output Interface: Wiegand 26-bit or 34-bit (Adjustable)
Input Port: External LED Control | External Buzzer Control
Operating Voltage: 7?13V DC
Current Draw: < 80mA
LED Indicator: Pulsing White Standby Light
Audio Indicator: Beep
Ingress Protection: IP65 (Indoor / Outdoor Use)
Operating Temperature: -10?C to +65?C
Operating Humidity: 10% ? 90% RH (Non-condensing)
Dimensions: 90 ? 90 ? 16 mm
Color Options: Black / White
