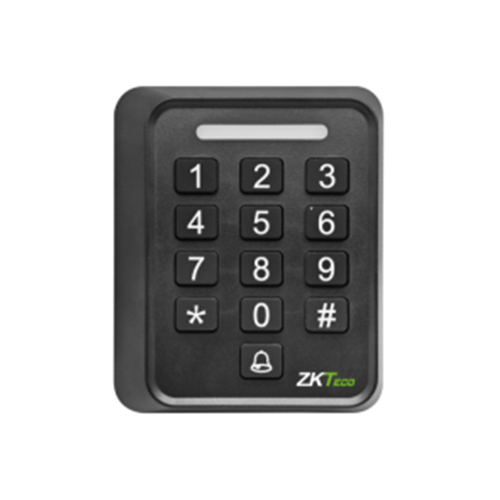

SA60 BM – Standalone Access Control Terminal (13.56MHz MF/IC)

ZKTeco SA60 M is a standalone access control terminal supporting 13.56MHz Mifare / IC cards and PIN code authentication. It allows card only, PIN only, or card + PIN verification, accommodating up to 2,000 users. The black/white terminal integrates seamlessly into residential or commercial security installations.

Key Specifications:

Model: SA60 M
Authentication Method: Card / Password / Card + Password (4?6 digits, Physical Keypad)
User Capacity: 2,000
Card Capacity: 2,000
Card Type: 13.56MHz Mifare / IC Card
Verification Speed: <0.16s @ Card
Recognition Distance: <5cm @ Card
Communication: Electric Lock1, Door Sensor1, Exit Button1, Doorbell1
Standard Functions: Access Control, Buzzer, Multiple Verification Methods, LED Status Indicators (Flashing Green + 1 Beep: Verification Successful; Flashing Blue: Standby; Flashing Blue2 + 3 Beeps: Verification Failed; Flashing Blue4 + Flashing Green + 5 Beeps: Factory Restore)
Power Supply: DC 12V
Operating Temperature: -20?C to 60?C
Operating Humidity: 20%?80% RH (Non-condensing)
Dimensions (L?W?D): 103.5 ? 86 ? 20 mm
Gross Weight: 0.15 kg
Net Weight: 0.1 kg
Installation: Wall-mount
Housing Material: ABS
Certifications: ISO9001, ISO14001
