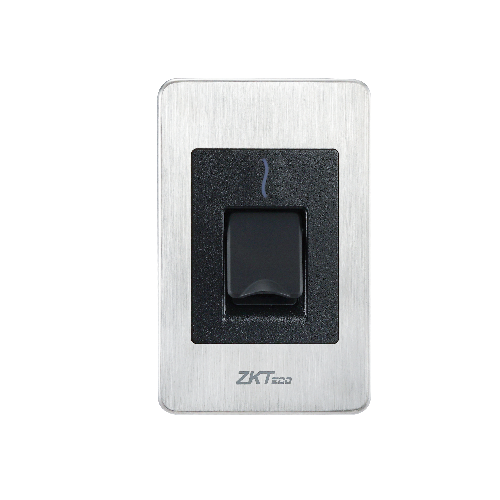

FR1500S E – Biometric Access Control Terminal (125kHz ID)

ZKTeco FR1500S E is a biometric reader supporting fingerprint and 125kHz ID card verification. With fast fingerprint recognition (<0.3s) and secure anti-spoofing, it is ideal for high-security environments. The E version supports standard ID cards and provides flexible deployment for indoor, outdoor, or semi-enclosed areas.

Key Specifications:

Model: FR1500S E
Authentication Method: Fingerprint / Card
Card Type: 125kHz ID Card (Standard)
Biometric Verification Speed: <0.3s @ Fingerprint
Recognition Distance: <5 cm @ Card
False Acceptance Rate (FAR): =0.0001%
False Rejection Rate (FRR): =0.01%
Biometric Algorithm: ZKFingerprint V10.0 / V13.0
Communication: RS485: ZKTeco RS485 *1 / OSDP Ver 2.1.7
Visual Indicator: LED (Blue = Standby, Green = Verified, Red = Failed)
Audio Indicator: Beeper
Operating Environment: Indoor / Outdoor / Semi-Enclosed Area
Power Supply: 9?24V DC
Operating Temperature: -10?C to 45?C
Operating Humidity: 10%?90% RH (Non-condensing)
Dimensions (L?W?H): 121 ? 77.3 ? 38 mm
Gross Weight: 0.26 kg
Net Weight: 0.20 kg
Installation: Wall Mount (compatible with single gang box)
Housing Material: SUS304 Stainless Steel & ABS Plastic
Ingress Protection: IP65
Certifications: ISO14001, ISO9001, CE, FCC, RoHS
