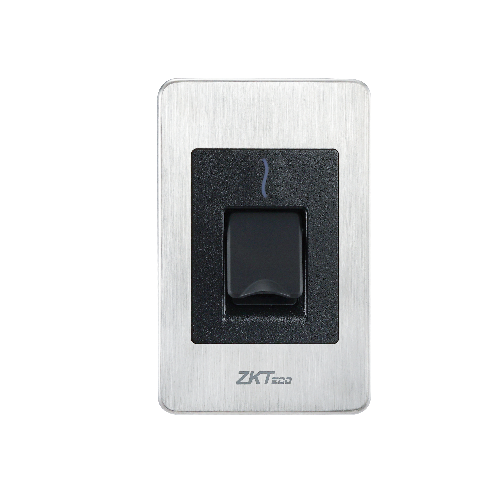

FR1500S M – Biometric Access Control Terminal (13.56MHz IC / MF)
ZKTeco FR1500S M is a biometric reader supporting fingerprint and 13.56MHz IC / Mifare card verification. With fast fingerprint recognition (<0.3s) and secure anti-spoofing, it is ideal for high-security environments. The M version supports IC / Mifare cards and optional encrypted DESFire cards for enhanced security.
Key Specifications:
Model: FR1500S M
Authentication Method: Fingerprint / Card
Card Type: 13.56MHz IC / Mifare Card (Optional: Encrypted DESFire 13.56MHz)
Biometric Verification Speed: <0.3s @ Fingerprint
Recognition Distance: <5 cm @ Card
False Acceptance Rate (FAR): =0.0001%
False Rejection Rate (FRR): =0.01%
Biometric Algorithm: ZKFingerprint V10.0 / V13.0
Communication: RS485: ZKTeco RS485 *1 / OSDP Ver 2.1.7
Visual Indicator: LED (Blue = Standby, Green = Verified, Red = Failed)
Audio Indicator: Beeper
Operating Environment: Indoor / Outdoor / Semi-Enclosed Area
Power Supply: 9?24V DC
Operating Temperature: -10?C to 45?C
Operating Humidity: 10%?90% RH (Non-condensing)
Dimensions (L?W?H): 121 ? 77.3 ? 38 mm
Gross Weight: 0.26 kg
Net Weight: 0.20 kg
Installation: Wall Mount (compatible with single gang box)
Housing Material: SUS304 Stainless Steel & ABS Plastic
Ingress Protection: IP65
Certifications: ISO14001, ISO9001, CE, FCC, RoHS
