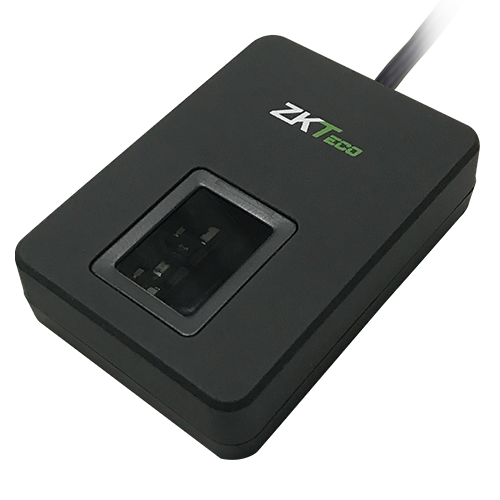

ZKTeco USB Fingerprint Scanner is a compact, high-resolution fingerprint reader designed for fast and accurate fingerprint detection. It supports desktop registration, low power consumption, and is compatible with Android tablets and mobile phones. SDKs are provided for custom application development.

Key Specifications:

CPU: 280MHz DSP
Flash: 32 MB
SoC: RTOS
Image Quality: 2-megapixel CMOS
Encrypted Fingerprint Data: Yes
Water Splash Proof: Yes
Power Supply / Current: 5V DC, 200mA scanning / 60mA idle
LED Indicator: White
Communication: USB 2.0 / USB 1.1
Interface Socket: USB Type A
Image Resolution: 500 DPI
Effective Collecting Area: 15.24 ? 20.32 mm
Collecting Area: 16.5 ? 23 mm
Image Size: 300 ? 400 pixels
Supported Image Formats: BMP, JPG, RAW
Algorithm: ZKFinger V10.0
Grayscale: 256
Operating Environment: -20?C ~ +50?C; 90% RH
Dimensions (L?W?H): 75.5 ? 53.2 ? 19 mm
Certifications: CE, FCC, RoHS
