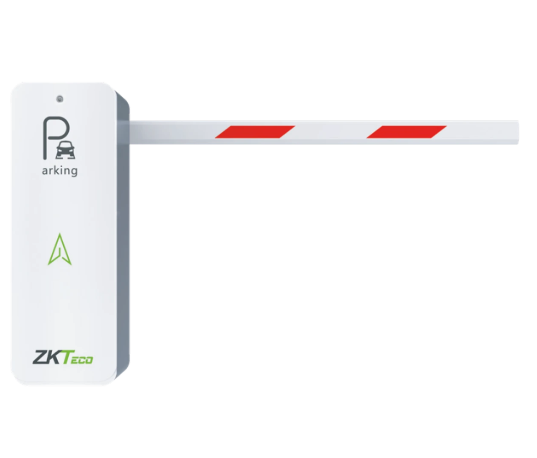

BGM445L/R (LED) is a high-performance automatic barrier gate designed for reliable vehicle access control. It is powered by a 24V DC brushless motor, ensuring stable operation, low noise, and long service life. Equipped with a 4.5-meter telescopic straight boom with LED lighting, it enhances visibility and safety for parking lots, residential communities, and commercial entrances.
The system features a digital control mainboard with flexible configuration options, obstacle detection with automatic rebound, and manual operation in case of power failure, making it suitable for high-frequency traffic management.
Key Specifications:
Motor Type: DC 24V Brushless Motor
Output Power: 160W
Output Current: 10A
Operating Voltage: DC 24V
Power Supply: AC 220V / 110V, 50?60Hz
Operating Speed: 1.5s?6s (adjustable)
Boom Length: 4.5 meters
Boom Type: Telescopic Straight Boom with LED
MCBF: 2 Million Times
Control Board: Digital Control Mainboard
Safety Function: Obstacle Detection with Auto Rebound
Manual Operation: Supported During Power Failure
Signal Output: Traffic Light Output / Failure Warning
Remote Control Distance: =30m
Protection Level: IP54
Operating Temperature: -30?C to 75?C
Chassis Dimensions (L?W?H): 330 ? 265 ? 980 mm
Net Weight (excluding boom): 40kg
