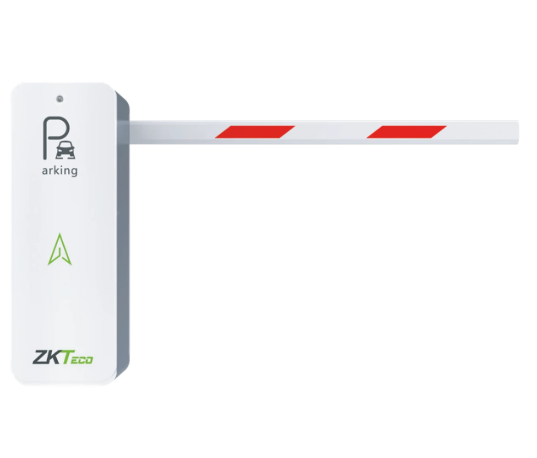

BGM460L/R (LED) is an advanced automatic barrier gate engineered for wider vehicle lanes. Driven by a high-efficiency 24V DC brushless motor, it provides smooth, quiet, and durable performance. The 6.0-meter telescopic straight boom with integrated LED lighting improves night visibility and traffic guidance.

Designed for logistics centers, industrial parks, toll stations, and large parking facilities, it supports intelligent safety features and reliable continuous operation.

Key Specifications:

Motor Type: DC 24V Brushless Motor
Output Power: 160W
Output Current: 10A
Operating Voltage: DC 24V
Power Supply: AC 220V / 110V, 50?60Hz
Operating Speed: 1.5s?6s (adjustable)
Boom Length: 6.0 meters
Boom Type: Telescopic Straight Boom with LED
MCBF: 2 Million Times
Control Board: Digital Control Mainboard
Safety Function: Obstacle Detection with Auto Rebound
Manual Operation: Supported During Power Failure
Signal Output: Traffic Light Output / Failure Warning
Remote Control Distance: =30m
Protection Level: IP54
Operating Temperature: -30?C to 75?C
Chassis Dimensions (L?W?H): 330 ? 265 ? 980 mm
Net Weight (excluding boom): 40kg
