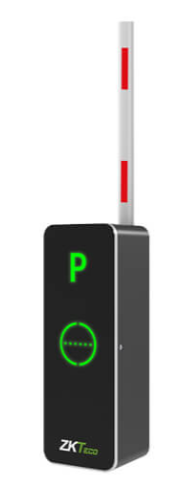

BGM1045L/R is a versatile automatic barrier gate designed for medium-width vehicle lanes. Equipped with a 4.5-meter straight boom and powered by a high-efficiency 24V brushless motor, it provides stable operation, adjustable speed control, and enhanced durability for continuous use environments.

Its interactive LED chassis design and programmable control panel allow flexible configuration and system expansion. The intelligent safety system detects obstacles and automatically stops or rebounds the boom to ensure vehicle and pedestrian safety.

Key Specifications:

Motor Type: DC 24V Brushless Motor with Encoder
Motor MCBF: 3 Million Times
Output Power: 120W
Rated Current: 6A
Power Supply: AC 220V, 50Hz / AC 110V, 60Hz
Operating Speed: 2.5s
Boom Arm Length: 4.5m
Boom Arm Type: Straight Boom
Control System: Embedded Programmable Controller
Smart Control: ZKEasyGo APP
Safety Function: Automatic Obstacle Detection
Additional Features: Adjustable Rise/Fall Angle / Automatic Delay Closing / Emergency Opening / Backup Battery Support
Remote Control Distance: =30m
Operating Temperature: -35?C to 70?C
Operating Humidity: <90% Chassis Dimensions (W?L?H): 350 ? 280 ? 1000 mm Chassis Weight: 45kg
