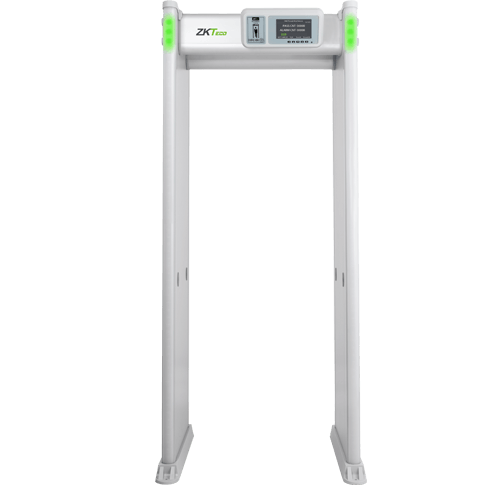

ZK-D4330 is a multi-zone walk-through metal detector designed for high-accuracy security screening. Featuring up to 69 adjustable detection zones and 500 sensitivity levels, it ensures precise contraband detection with fast verification speed and excellent anti-interference performance. Equipped with a 7-inch touch screen and remote control support, it offers simple installation, TCP/IP communication, pass and alarm count memory, and customizable language interface, making it ideal for airports, public venues, factories, and large events.

Key Specifications:

Display: 7-inch Touch Screen
Physical Keypad: 5 Keys
Detection Zones: 12 / 24 / 33 / 46 / 69 Adjustable
Sensitivity Level: 500 Levels
Channels: 100
Smallest Detectable Object: F22.25 ? T1.85 mm (Steel-Nickel Alloy)
Detection Distance: Vertical 20?2000mm
Alarm Modes: Sound & LED Visual Indicator
Alarm Tones: 16 Types
Volume Adjustment: 0?100 Levels (Max. 80 dB)
LED Indicators: 4 Sets of Red LEDs (Contraband Detection)
Access Indicator: Green = Passing / Red = Alarm / Yellow = Non-Passing
Throughput: >40 Persons/Minute
Detection Mode: Automatic / Infrared (Default)
IR Groups: 2
Detected Objects: Ferrous & Non-Ferrous Metal Weapons
Power Supply: AC 100V?240V (DC 15V/4.8A)
Input Voltage: DC 15V / POE (Optional)
Operating Current: 1.3A
Operating Power: 20W
Operation Capability: 24/7 Continuous Operation
Operating Frequency: 5.7kHz?9.6kHz
Operating Temperature: -20?C to 55?C
Storage Temperature: -25?C to 60?C
Operating Humidity: <95% RH (Non-Condensing)
Application Environment: Indoor / Semi-Outdoor (Optional)
Dimensions (L?W?H): 2220 ? 930 ? 760 mm
Lane Size (L?W?H): 2010 ? 760 ? 760 mm
Packaging Dimensions (L?W?H): 2300 ? 335 ? 800 mm
Net Weight: 60kg
Gross Weight: 70kg
Interface: Relay Output / Network Interface
Remote Control: Supported
Certifications: CE-EMC, CE-LVD, FCC sDOC
