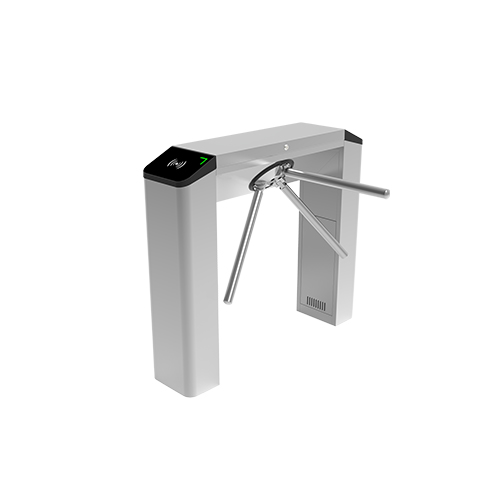

TS2000 Plus Series is a bridge-type tripod turnstile designed for secure and efficient pedestrian access control. Built with SUS304 stainless steel cabinet, it ensures long-term durability and reliable performance in both indoor and sheltered outdoor environments.

Featuring a streamlined under-mount RFID card and QR code reader design, TS2000 Plus provides an aesthetically pleasing verification area. It supports bi-directional movement and multiple working modes. For safety, the arm automatically drops during power failure or when receiving a fire alarm signal. With stable operation and easy installation, it is ideal for schools, museums, factories, gyms, and other medium-security applications.

Key Specifications:

Lane Type: Single Lane
Lane Width: 550mm
Barrier Movement: Rotating Tripod
Barrier Width: 515mm
Flow Rate: RFID 25 persons/min ; Fingerprint 20 persons/min
Visual Indicator: Green = Normal Use / Red = Closed
Audio Indicator: Internal Buzzer
Chassis Material: SUS304 Stainless Steel (T=1.2mm)
Barrier Material: SUS304 Stainless Steel
Lid Material: PC Plastics + Tempered Glass + SUS304
Authentication Options: Under-mount RFID (ProID, KR Series) / Fingerprint (FR1200, FR1500S)
Recommended Controller: C3-200 Pro Plus / InBio260 Pro Plus
Communication: RS485 ?1 ; Fire Alarm Port (Relay) ?1
Accessibility: Wireless Remote / Wired Remote / QR Reader
Power Supply: 110V/220V AC, 50?60Hz ; DC 12V
Power Rating: 10VA (Standby) ; 40VA (Operation)
MCBF: 2 Million
MTTR: <60 Minutes
Noise Level: <65dB
Operating Temperature: -20?C to 70?C
Operating Humidity: 0%?85% RH (Non-condensing)
Ingress Protection: IPX4
Security Features: Anti-tailgating ; Emergency Drop Arm
Dimensions (L?W?H): 775 ? 1100 ? 980mm
Footprint: 260 ? 1110mm
Net Weight: 30kg
Gross Weight: 35kg
Certifications: CE, FCC, UKCA, ISO9001
Supported Software: ZKBio CVAccess / ZKBio CVSecurity
