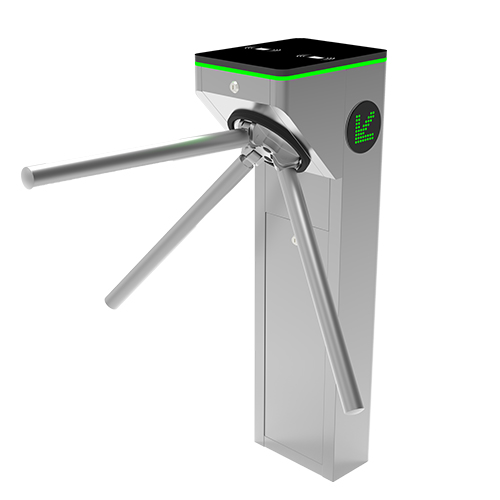

MTS1000 Series is a cost-effective bi-directional tripod turnstile designed for reliable pedestrian access control. Constructed with SUS304 stainless steel housing, it ensures durability and stable performance in both indoor and sheltered outdoor environments.

Equipped with LED pictograms for intuitive guidance, the turnstile supports smooth two-way traffic with high throughput efficiency. It features an automatic drop-arm function for emergency situations and offers low power consumption with a wide range of optional accessories, making it suitable for offices, factories, schools, and public facilities.

Key Specifications:

Power Supply: AC110V/220V, 50/60Hz
Working Temperature: -28?C to 60?C
Working Environment: Indoor / Outdoor (If Sheltered)
Working Humidity: 5%?80%
Throughput Rate: Max. 25 Persons/Minute
Lane Width: 478mm
Barrier Movement: Rotating
Emergency Mode: Supported (Drop Arm)
LED Indicator: Yes
Security Level: Medium
MCBF: 2 Million
Cabinet Material: SUS304 Stainless Steel
Lid Material: Acrylic + Glass
Barrier Material: SUS304 Stainless Steel
Footprint: 138 ? 250mm
Dimensions (L?W?H): 798 ? 750 ? 950mm
Net Weight: 35 ? 2.5kg
Gross Weight: 40 ? 5kg
Options / Accessories: Card Box, Remote Control, QR Reader
