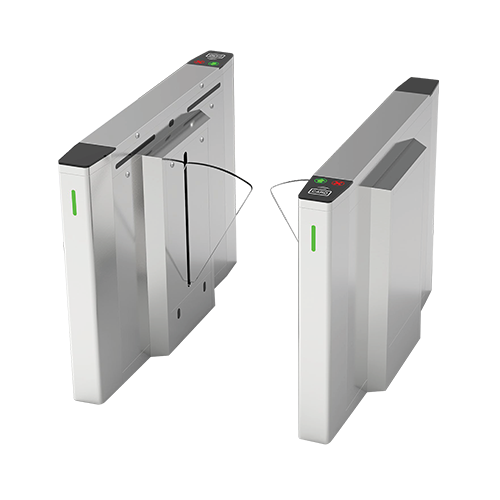

FBL500 Series is a single-lane flap barrier turnstile designed for secure and efficient pedestrian access control. Built with SUS304 stainless steel cabinet, it ensures long-lasting durability and stable performance in indoor or sheltered outdoor environments.

The retracting acrylic barriers provide smooth and quiet operation, automatically retracting during emergencies or power outages (with battery installed) to ensure safe evacuation. With factory-tested reader integration, FBL500 Series offers true plug-and-play installation and low total cost of ownership, making it ideal for office buildings, transportation hubs, and commercial facilities.

Key Specifications:

Lane Type: Single Lane
Lane Width: 600mm
Barrier Material: Acrylic
Barrier Movement: Retracting
Opening Time: 0.8s
Opening Noise: =30dB
Throughput Rate: 30 Persons/Minute
MCBF: 2 Million
Cabinet Material: SUS304 Stainless Steel
Lid Material: SUS304 Stainless Steel
LED Indicator: Supported
Emergency Mode: Supported (Automatic Retract)
Power Supply: AC100?120V / AC200?240V, 50/60Hz
Security Level: Medium
Operating Temperature: -20?C to 70?C
Operating Humidity: 5%?90% (Non-Condensing)
Working Environment: Indoor / Outdoor (If Sheltered)
Dimensions (L?W?H): 1360 ? 280 ? 980mm
