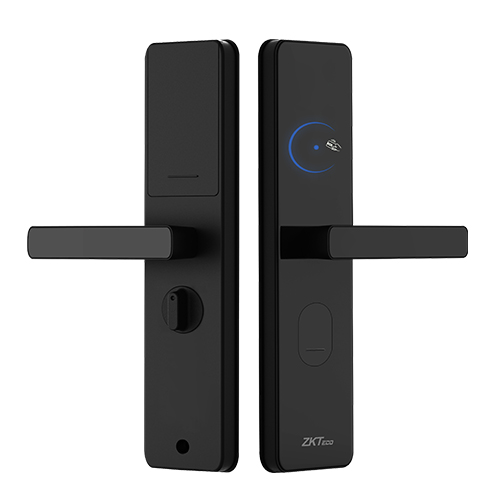

SL02-LH190H is a smart hotel lock designed to deliver a secure and convenient keyless experience for hotels and resorts. Guests can access rooms using IC cards, while hotel managers can deactivate lost cards and generate reports such as Unlock Logs, Lost Card Lists, and Issued Card Reports to prevent unauthorized access.

The lock is compatible with ZKBio CVSecurity SmartLock, enabling web-based centralized management, access control integration, and optional elevator control functionality. With Zigbee 3.0 wireless communication and long battery life, SL02-LH190H provides reliable and intelligent hotel room security.

Key Specifications:

Material: Aluminum Alloy
Front Panel: ABS
Color: Black
Mortise Type: American Standard
Backset: 62mm (2-7/16″)
Axe Distance: Lever to Cylinder 95mm ; Lever to Thumbturn 62mm
Square Spindle: 8 ? 8 mm
Faceplate (H?W): 26 ? 204mm
Built-in Detectors: Latch Bolt, Deadbolt, Cylinder
Unlocking Methods: IC Card / Mechanical Key Backup
Card Type: S50 / S70 IC Card @13.56MHz
NFC Supported: Yes (ISO/IEC 14443 A)
Event Log Capacity: 500 Records (Auto-overwrite)
Wireless Communication: Zigbee 3.0 (IEEE 802.15.4)
Encoder: CR60W
Audio Prompt Language: English
Power Supply: 4 ? LR6 AA Batteries (Alkaline Recommended)
Battery Life: Approx. 5 Years (Based on 10 Unlocks/Day)
Supported Software: ZKBio CVSecurity SmartLock
Door Type: Swing Mortise Door
Door Thickness: 40?63mm
Door Swing: Right Inward (Standard)
Operating Temperature: -20?C to 55?C
Operating Humidity: 5%?95% RH (Non-condensing)
Exterior Dimensions (H?W?T): 330 ? 71 ? 22mm
Interior Dimensions (H?W?T): 330 ? 71 ? 22mm
Net Weight: 2.3kg
Gross Weight: 2.7kg
Certifications: CE, FCC
