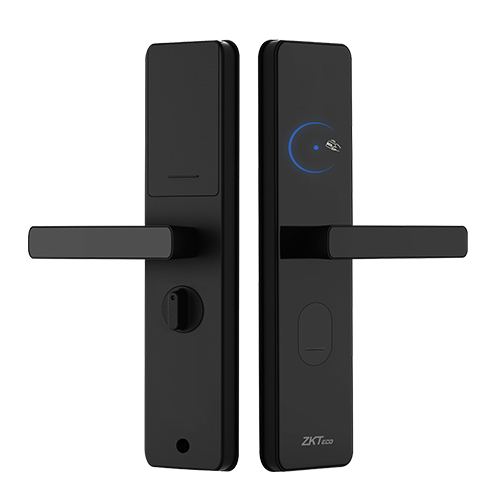

SL02-ZL140H is a wireless smart hotel lock designed for modern hotels and resorts. It connects seamlessly with ZKBio CVSecurity SmartLock, enabling remote control, real-time status monitoring, and unlock record synchronization.

Supporting multi-technology IC cards, the lock integrates with access control and elevator control systems, providing a comprehensive and intelligent hotel management solution. With Zigbee 3.0 communication and durable aluminum alloy housing, SL02-ZL140H ensures secure and stable performance.

Key Specifications:

Housing Material: Aluminum Alloy
Front Panel: ABS
Color: Black
Mortise Type: American Standard
Backset: 62mm (2-7/16″)
Axe Distance: Lever to Cylinder 95mm ; Lever to Thumbturn 62mm
Square Spindle: 8 ? 8 mm
Faceplate (H?W): 26 ? 204 mm
Built-in Detectors: Latch Bolt, Deadbolt, Cylinder
Unlocking Methods: IC Card / Web Application / Mechanical Key Backup
Card Type: S50 / S70 IC Card @13.56MHz
NFC Supported: Yes (ISO/IEC 14443 A)
Event Log Capacity: 500 Records (Auto-overwrite)
Wireless Communication: Zigbee 3.0 (IEEE 802.15.4)
Encoder: D147-H
Audio Prompt Language: English
Power Supply: 4 ? LR6 AA Batteries (Alkaline Recommended)
Battery Life: Approx. 1 Year 7 Months (Based on 10 Daily Cycles with Zigbee Connected)
Supported Software: ZKBio CVSecurity SmartLock
Door Type: Swing Mortise Door
Door Thickness: 40?63mm
Door Swing: Right Inward (Standard)Operating Temperature: -20?C to 55?C
Operating Humidity: 5%?95% RH (Non-condensing)
Exterior Dimensions (H?W?T): 330 ? 71 ? 22 mm
Interior Dimensions (H?W?T): 330 ? 71 ? 22 mm
Net Weight: 2.3kg
Gross Weight: 2.7kg
Certifications: CE, FCC
