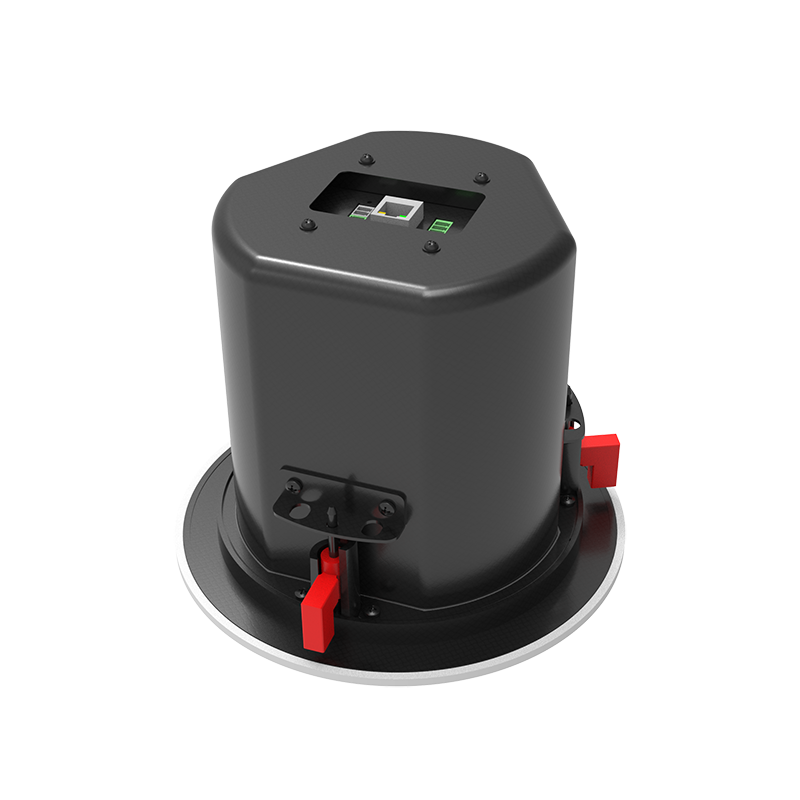

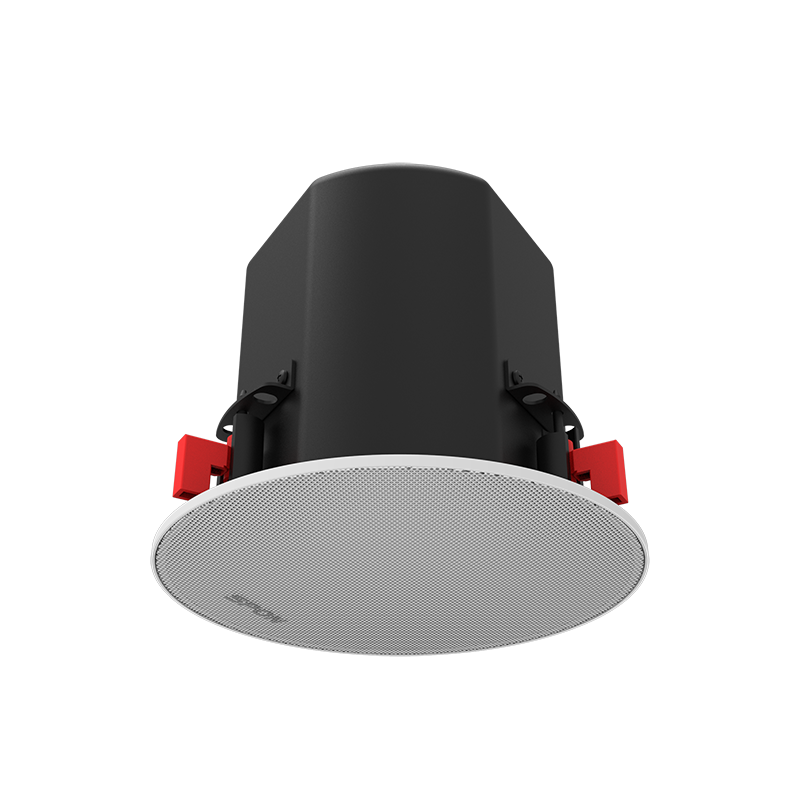

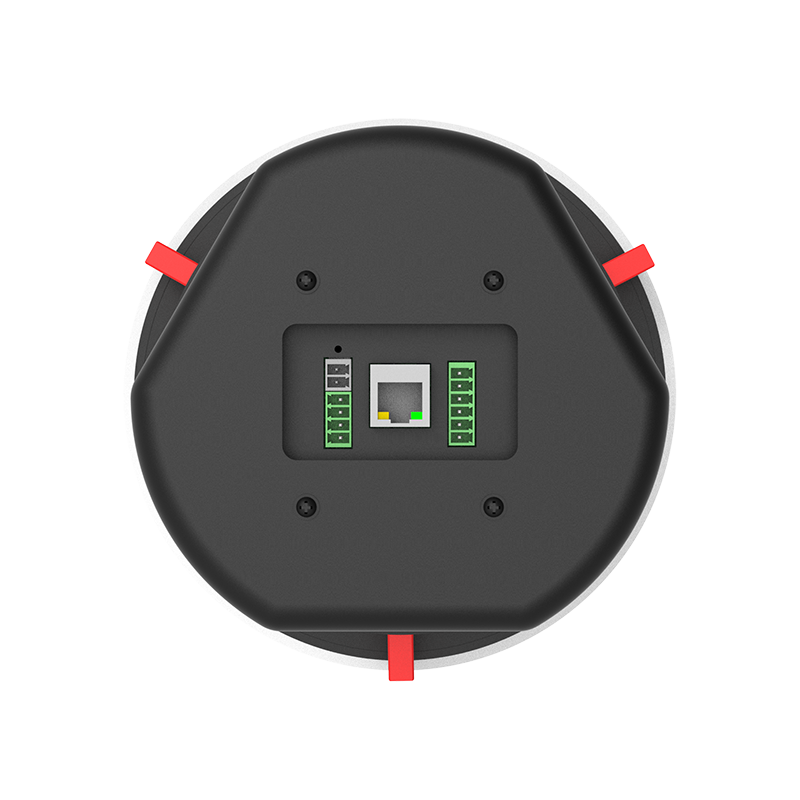

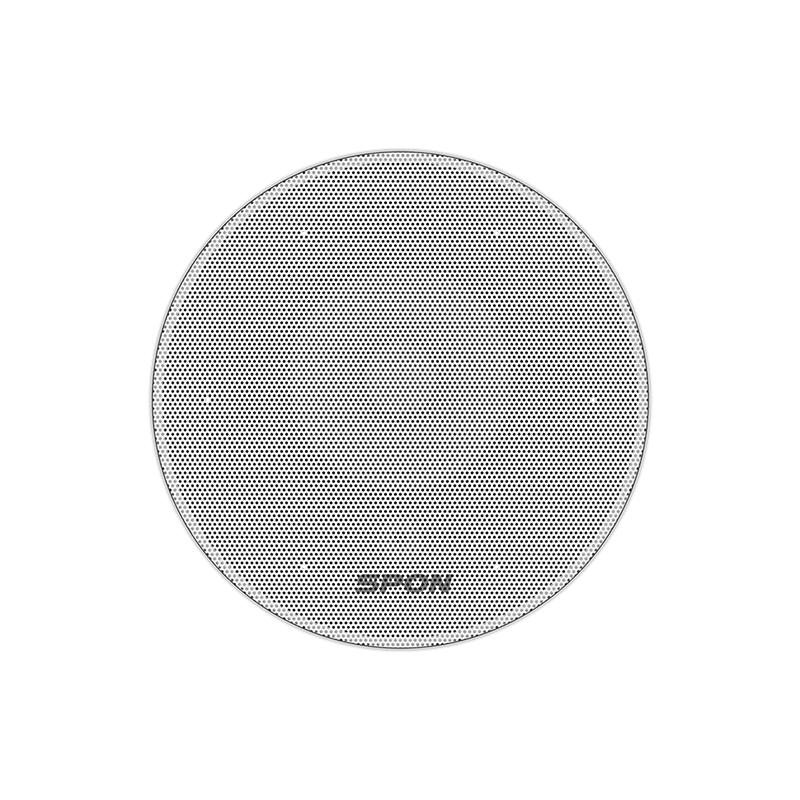

GEN-6212A01 is a PoE-powered network ceiling speaker designed for concealed ceiling installation. With a built-in 20W amplifier and two-way communication capability, it delivers crystal-clear audio for background music, real-time paging, and emergency broadcasting.

Equipped with 80MB internal storage (up to 20 WAV/MP3 files), the speaker supports SIP, ONVIF, multicast audio, and HTTP API for seamless integration with VoIP systems and video management platforms. Local control inputs and flexible playback scheduling make it ideal for hotels, offices, shopping malls, hospitals, and conference rooms.

Key Specifications:

Power Supply: DC24V / PoE (IEEE802.3af/at)
Power Consumption: =3W
Power Output: 20W (DC24V) / 15W (PoE/PoE+)
Frequency Response: 100Hz?18KHz
Network Interface: 10BASE-T / 100BASE-TX, RJ45
Network Protocol: TCP/IP, UDP, HTTP, RTP, RTSP, ARP, ICMP, NTP, SIP, ONVIF
Audio Codec: Opus, G.711u, G.711a, G.722
Audio Input: 1 ? Line/Mic (Balanced, Switchable)
Control Input: 2
Control Output: 1 (Relay output / DC12V output switchable)
Operating Temperature: -30?C to +60?C
Housing Material: Iron
Dimensions: f204 ? 167mm
Weight: 1900g
