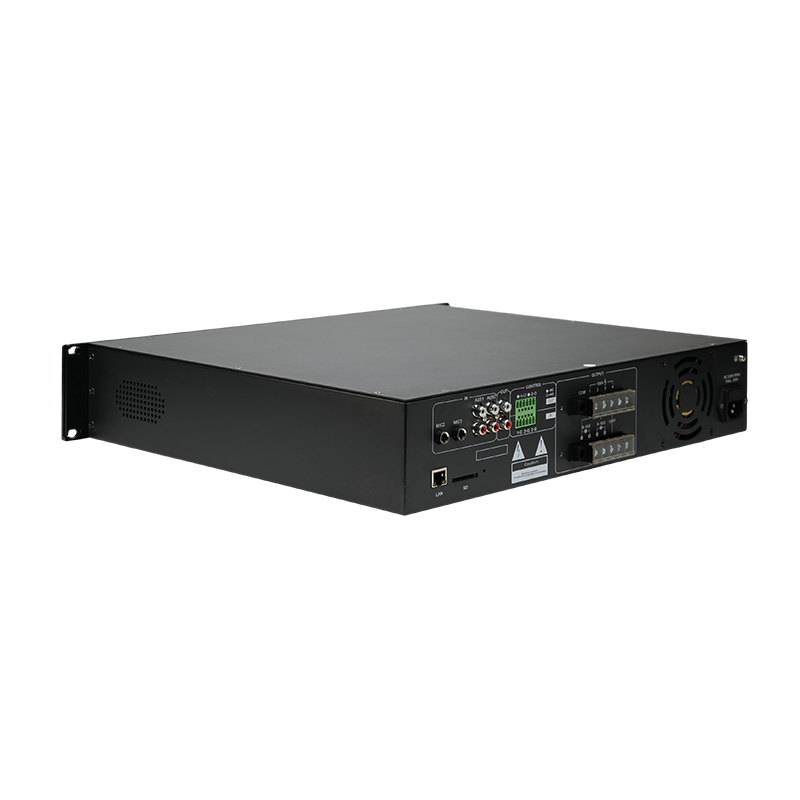

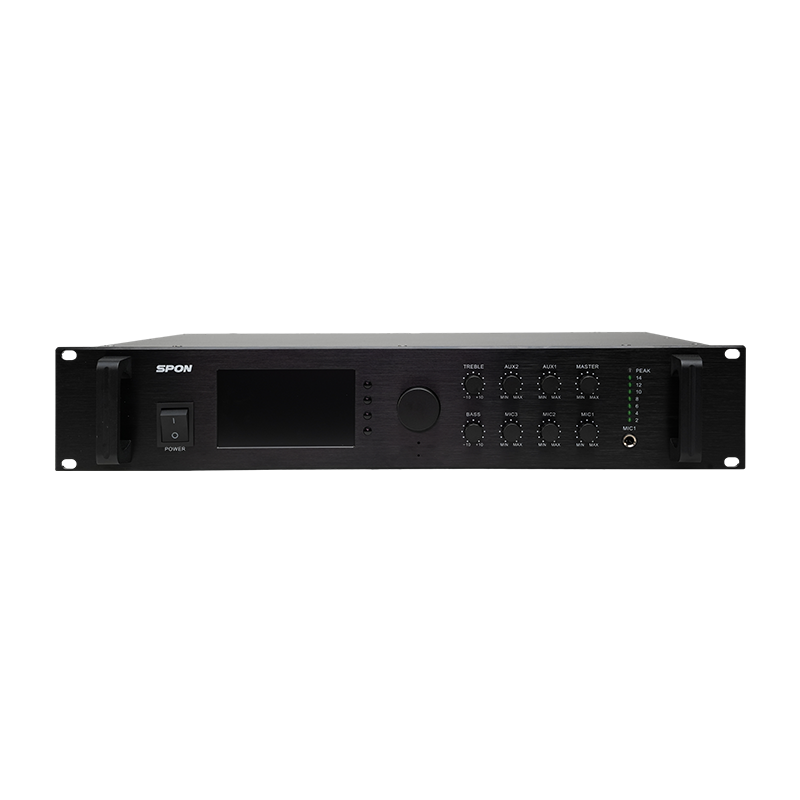

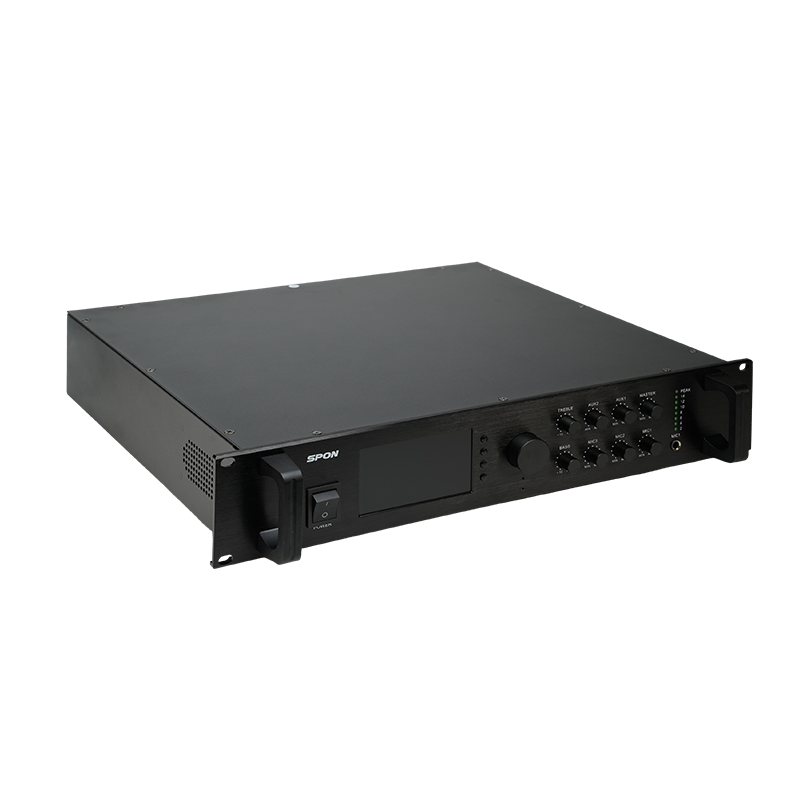

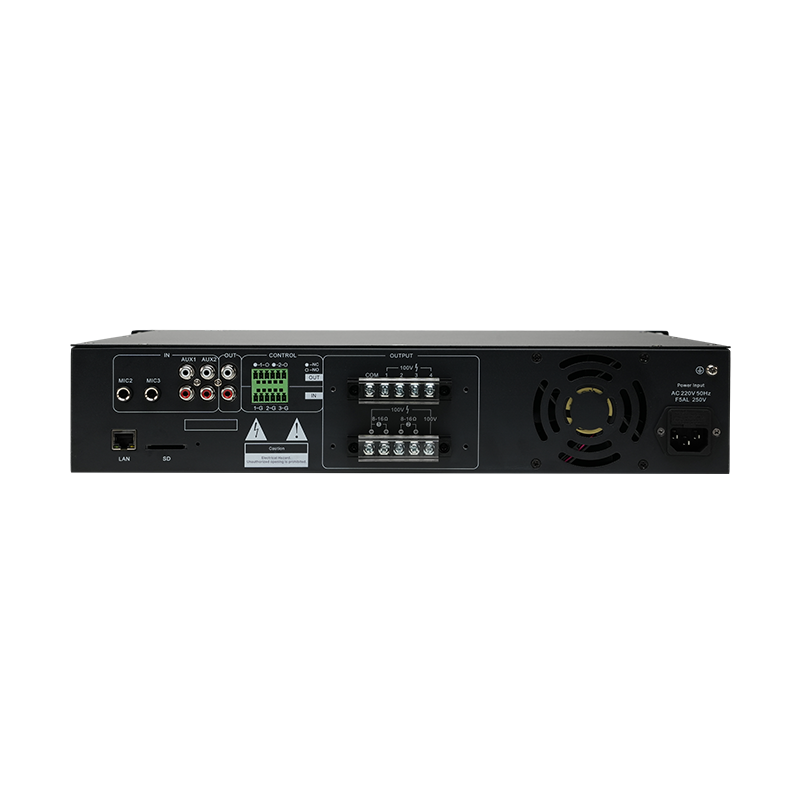

NBS-2301P26 is a 2U rack-mounted multi-zone IP mixer amplifier designed for supermarkets, schools, office buildings, and public facilities. Featuring a built-in 260W Class-D amplifier, it supports both 100V constant-voltage and 8?16O speakers, enabling flexible system deployment.

With four independently controlled zones, built-in microphone and speaker for intercom, and SD card support for offline scheduled broadcasting, the amplifier ensures continuous operation even if the server fails. It also supports real-time paging via SIP/VOIP devices and integrates with third-party systems such as fire alarms through relay I/O ports.

Key Specifications:

Power Parameters
Power Supply: AC 220V, 50Hz
Rated Output Power: 260W
Power Consumption: =320W

Audio Parameters
Audio Codec: MP2, MP3, PCM, ADPCM
S/N Ratio:
? Mic 1: =66dB
? Mic 2/3: =80dB
? AUX 1/2: =75dB
THD: =0.5% (1kHz, 1/2 rated output)
Frequency Response: 130Hz?18KHz
Sampling & Bit Rate: 8kHz?44.1kHz, 16bit, 8kbps?320kbps

Network Parameters
Network Interface: 10/100Mbps RJ45
Network Protocol: HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
Configuration: Web Interface / DevConfig Tool

Speaker Output
Multi-Zone Output: 100V (4 zones)
Speaker Output: 100V / 8?16O

Mechanical & Environment
Mounting: 2U Rack-Mounted
Operating Temperature: -10?C to +50?C
Humidity: =90% RH (non-condensing)
Cooling: Automatic fan (activated above 55?C)
Protection: Over-current, Short-circuit, Overload, Thermal protection
Front Panel: Aluminum Alloy
Housing: Surface-treated Steel
Color: Black

Dimensions & Weight
Product Dimensions: 483 ? 430 ? 88mm
Net Weight: 7.5kg
Packed Dimensions: 560 ? 530 ? 170mm
Gross Weight: 9.5kg
