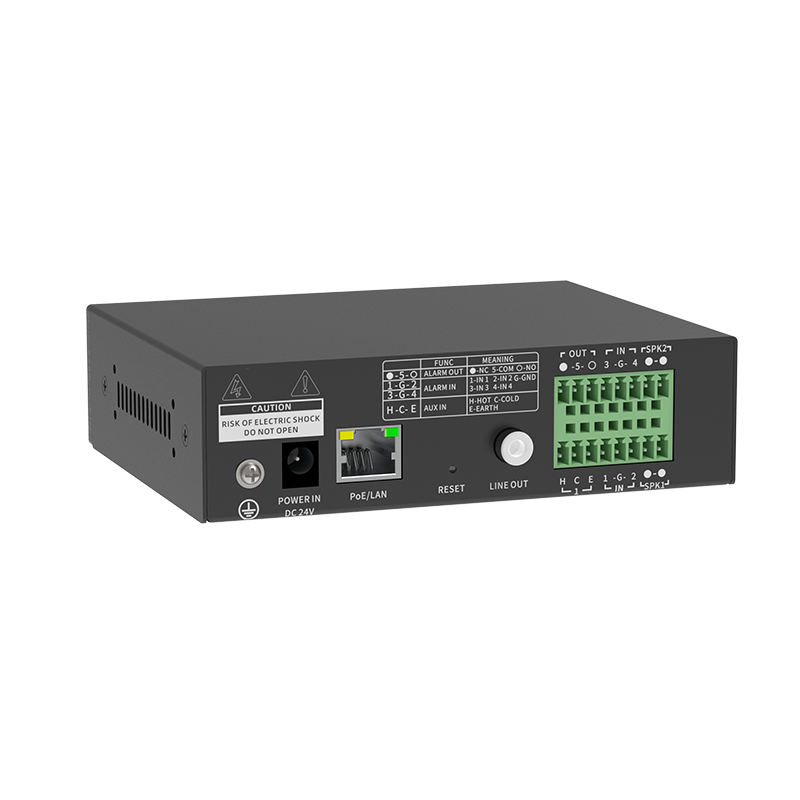

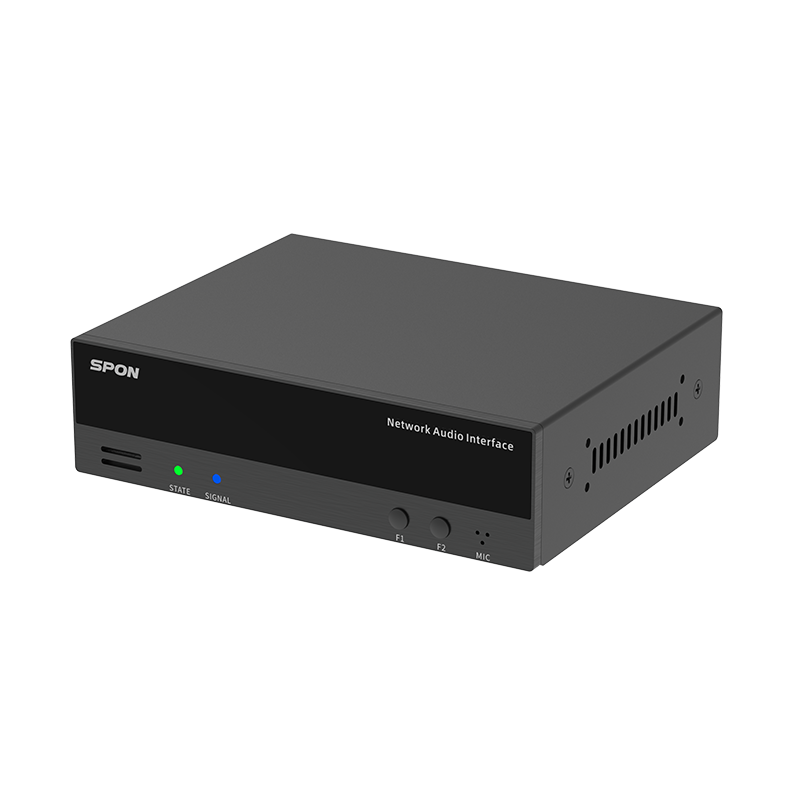

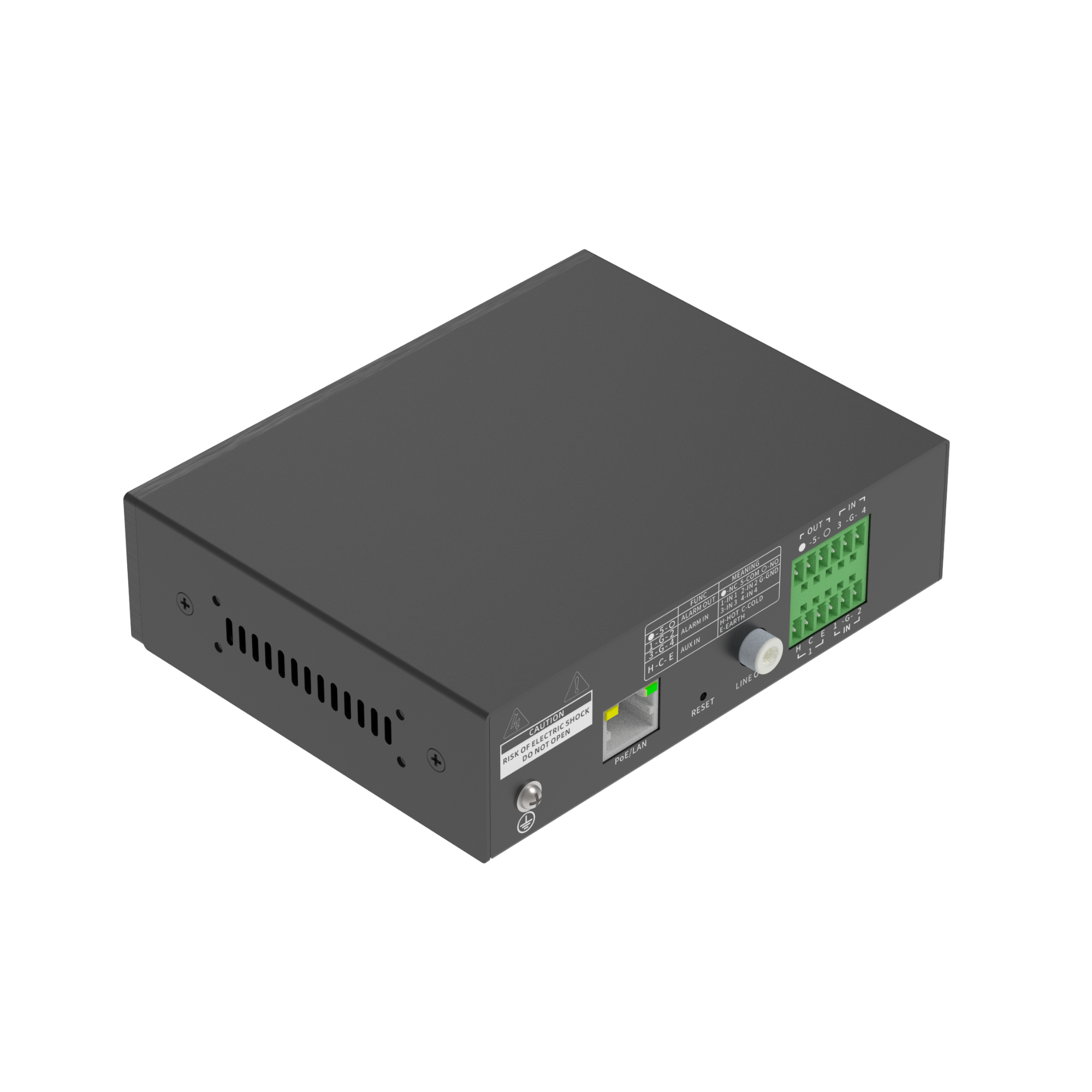

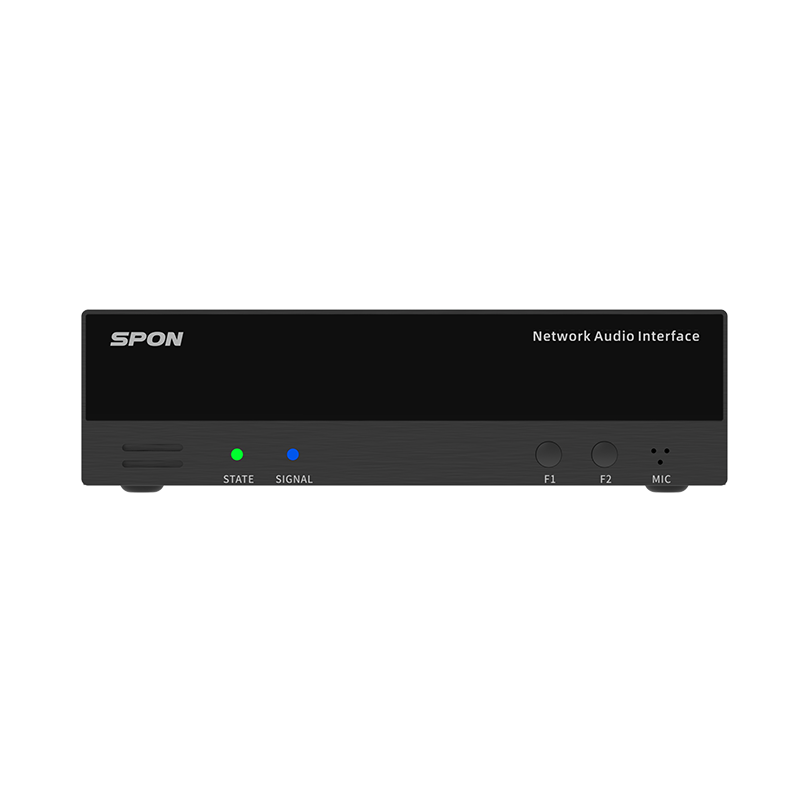

GEN-3001A03 is a compact Ethernet audio interface that transforms passive speakers or traditional amplifiers into fully network-enabled IP audio devices. With PoE or DC power supply, it simplifies cabling while enabling advanced features such as SIP/VMS calls, multicast streaming (up to 20 streams), scheduled playback, and local audio storage.

Featuring a built-in 2 ? 30W amplifier (for 😯 speakers), it allows existing analog PA systems to seamlessly upgrade to IP-based audio without replacing current equipment. Its versatile I/O ports and two customizable function keys provide flexible integration for various commercial and industrial environments.

Key Specifications:

Power Supply: DC24V / PoE (IEEE802.3af/at)
Power Consumption: =3W
Power Output: 2 ? 30W (DC24V) / 2 ? 7W (PoE/PoE+)
Frequency Response: 100Hz?20KHz
Network Interface: 10BASE-T / 100BASE-TX, RJ45
Network Protocol: TCP/IP, UDP, HTTP, RTP, RTSP, ARP, ICMP, NTP, SIP, ONVIF
Audio Codec: Opus, G.711u, G.711a, G.722
Audio Input: 1 ? Line/Mic (Balanced, Switchable)
Audio Output: 1 ? RCA (0dB)
Control Input: 4
Control Output: 1 (Relay output / DC12V output switchable)
Operating Temperature: -10?C to +50?C
Housing Material: Sheet Metal
Dimensions: 115 ? 139 ? 40mm
Weight: 500g
